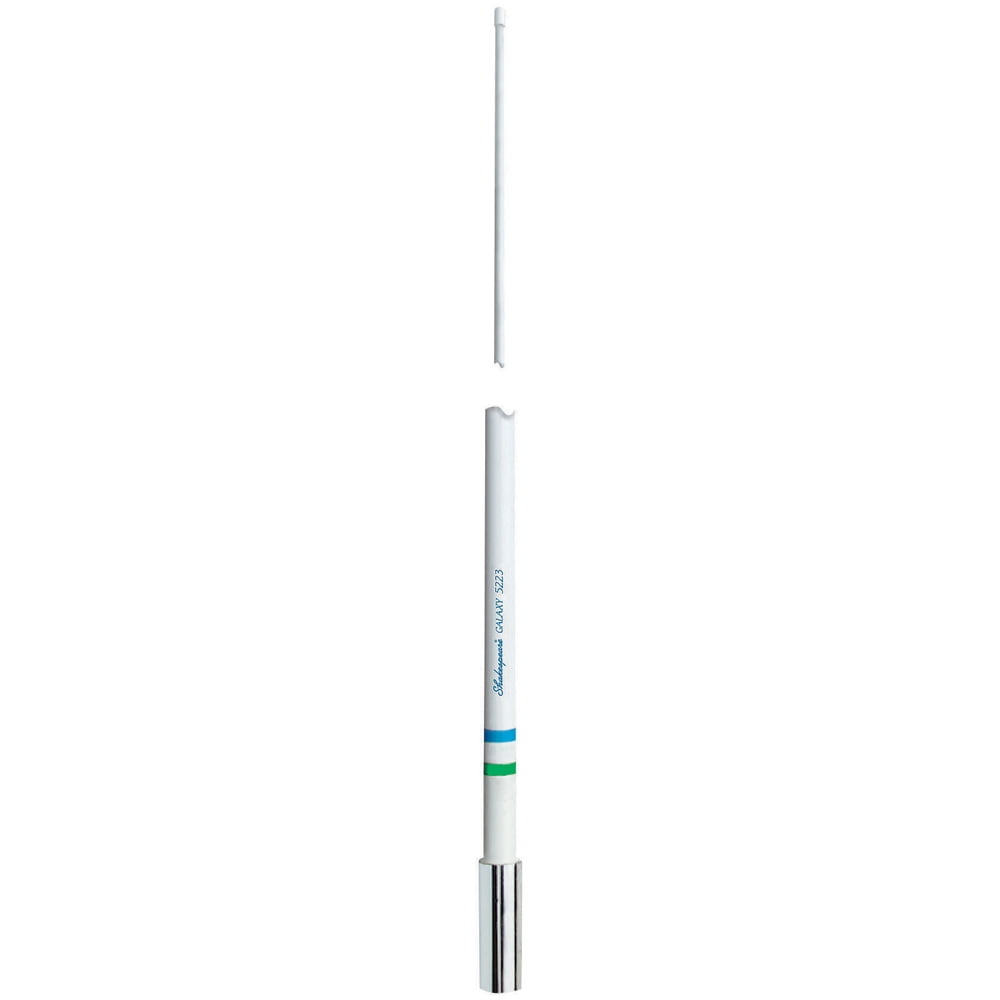

Shakespeare 5223-XT 8' CB Antenna

Galaxy Style 5223-XT 8 ft. (2.43 M) CB Marine Continuous-load, end-fed -wave A tuneable, easily installed CB antenna for top performance in demanding situations. Connector is supplied but not installed, so only a 3/8in hole is required for passage of the cable. Coax length can be altered on this antenna. Stainless Steel ferrule with standard 1-inch 14-thread Includes 20ft RG-8/X cable, which can be cut to size, and a PL-259 connector Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a 410 Mounting Kit and a 5228 Extension Mast (each sold separately) to form a 16' antenna system Frequency: 27 MHz Citizens Band One section Twin to: Shakespeare Style 5225-XT Suggested mount(s): 4187 409-R Galaxy 5223-XT Specifications Band: CB Marine Max. Input Power: 25 watts SWR: 1.5:1 or less at Channel 19 Bandwidth: 440 kHz within 2.0:1 VSWR Ferrule: Stainless steel Coax Supplied: 20 ft of RG-8/X Connector Supplied: PL-259, not attached Color/finish: Galaxy White DC Ground: DC Grounded - The antenna will read shorted on continuity test.Shakespeare Galaxy 5223-XT CB 8' CB Unity Gain Continuous-load, end-fed 1/2 wave A tuneable, easily installed CB antenna for top performance in demanding situations. Connector is suppled but not installed, so only a 3/8' hole is required for passage of the cable. Coax length can be altered on this antenna.

• Stainless steel ferrule with standard 1'-14 thread
• Includes 20' RG-8/X cable, which can be cut to size, and a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a 410-R Mounting Kit and a Shakespeare Style 5228 Extension Mast to form a 16' antenna system
• One section
• Twin to: Galaxy Style 5225-XT VHF
• Shakespeare Limited Warranty: 5 years

Technical Specifications:

Frequency:	27 MHz Citizens Band
Bandwidth:	440 Khz within 22.0:1 VSWR
SWR:	1.5:1 or less at Channel 19
Impedance:	50 ohms
Max Input (Watts):	25 Watts
DC Ground:	YES
Height (feet):	8'
Polarization:	Vertical
